This machine is designed with slide rail up-down & high-power cutting for ultra stability which enhances sawing speed & accuracy and allows cutter to be more durable. Material infeed by pushing reduces the amount of cutting tails. The machine is PLC controlled with auto-counter for easy operation & maintainence. Saw blade protection mechanism automatically stops the machine as alarm when the blade is blunt, this also ensures no burr on cutting section. There is an attached vaccum device for scraps collecting.
| HIGH SPEED CIRCULAR SAWING MACHINE | |
| Sawing Capacity | 145 |
| Cutting Motor | 10 hp |
| Cutting Speed | 3400 rpm |
| Cooling Pump | 1/8 hp |
| Saw Blade Size | dia. 300 - 400 mm |
| Vise Opening Width | Max. 150 mm |
| Cutting Length | 10-500 mm |

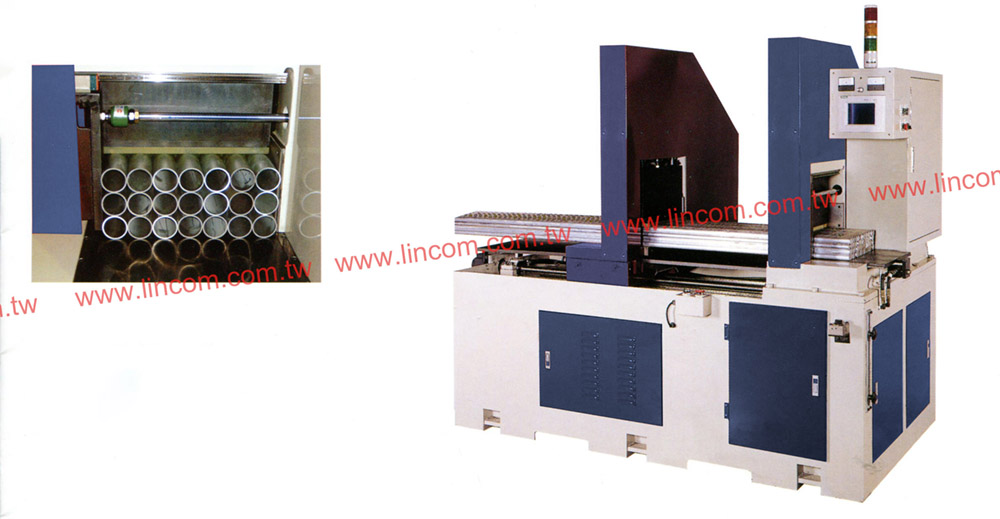

This machine is designed for nonferrous metal sawing, and cutting wide or multiple pieces at a time. High power design for sturdy fixture, operator adjusts horsepower depending on cutting object, this machine can clamp irregular objects & slightly bended material. Material feeding is servo motor controlled, cutting legnth tolerance within 0.1 mm. After cutting, the machine seperates end product before blade withdrawal to avoid marks on surface. Attached oil mist coolant device on cutter allows cutting section to be smooth & blade to be durable.
| HIGH SPEED ACCURACY ROUND SAW MACHINE | |
| Cutting Capacity | Rectangular: W 380 x H 120 mm Square: W 150 x H 150 mm Round: dia. 220 x 1 pcs; dia. 150 x 2 pcs |
| Application | For cutting nonferrous metal, aluminum extrusion, alumimum alloy, copper, cooling fin, plastic steel, bakelite, plastic material, etc. non metal material. |
| Cutting Length | 10 - 2000 mm |
| Min. Cutting Size | 60 mm |
| Main Power | Shaft Power 10 hp, double van hydraulic pump 30L |
| Control | Servo Motor Feeding, Numeric Figure Control With Touch Screen |
| Cutting Length | 10 - 500 mm |

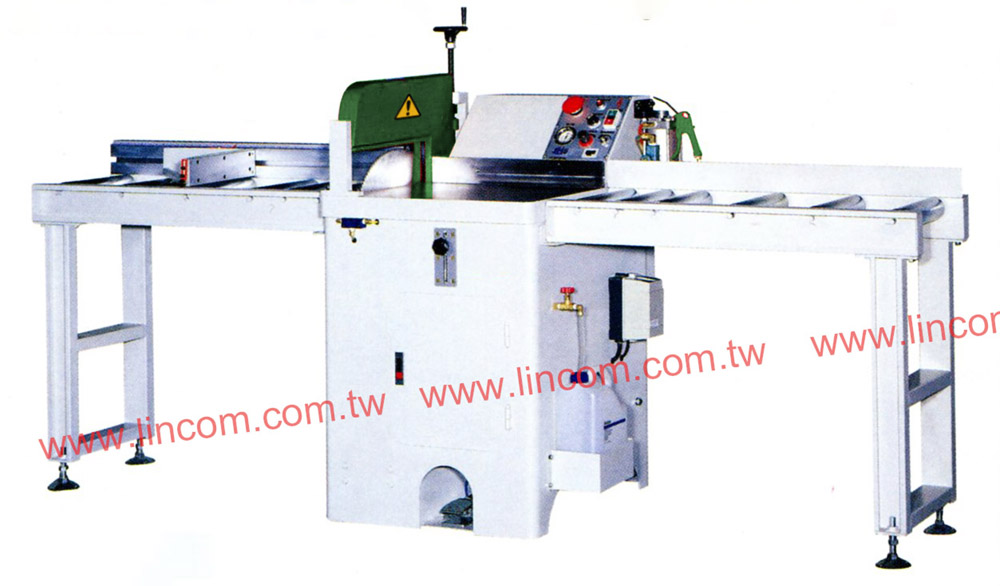

This machine's interior cutting & auto bar-clamping design saves manpower & time with low noise for user. The cutter is fixed with angles to enhance cutting accuracy, and while cutting the auto oil spray and cooling system leaves no scraps on blades which makes the blade to be more durable.
| ALUMINUM CIRCULAR SAWING MACHINE | |
| Sawing Capacity | Max. Cutting Width: 300 mm Max. Cutting Thickness: 125 mm |
| Cutting Angle | 90° & 45° |
| Cutting Speed | 3500 rpm |
| Table Area | 650 x 680 mm |
| Power | 5 hp |

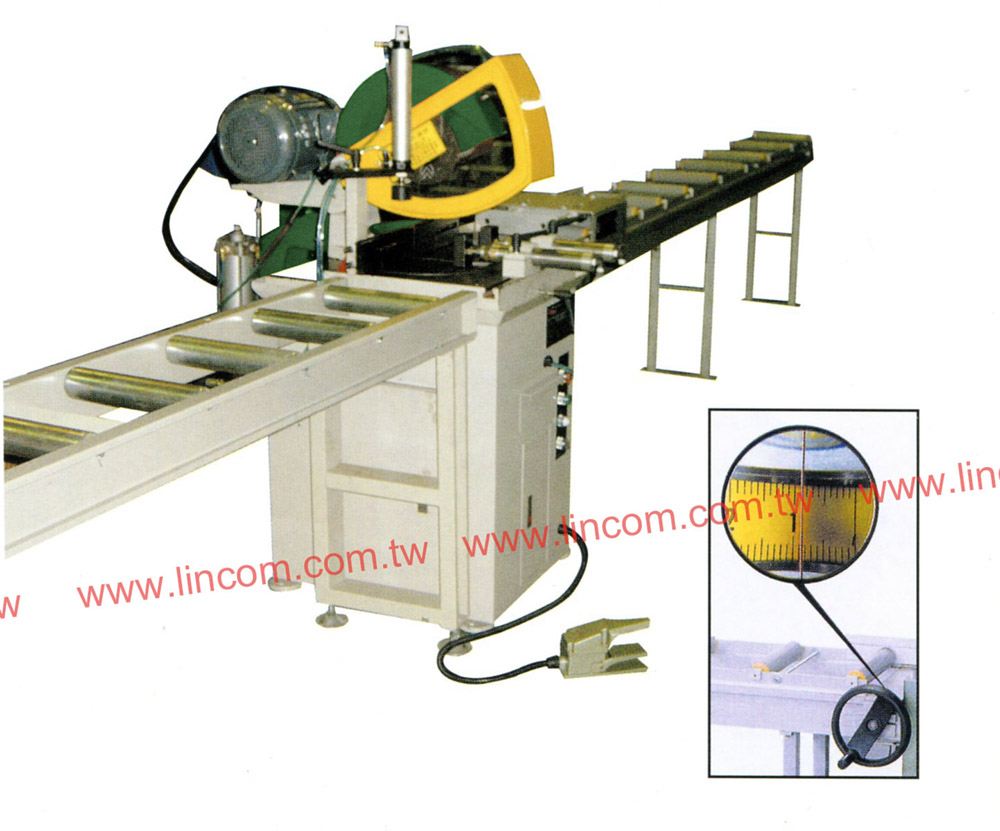

| HIGH SPEED CIRCULAR SAWING MACHINE | |
| Sawing Capacity | Round Tube: dia. 155 mm Trough Shape: 140 x 140 mm Rectangular: 80 x 180 mm |
| Main Power | 5 hp/ 2 p |
| Cutting Speed | 3000 rpm |

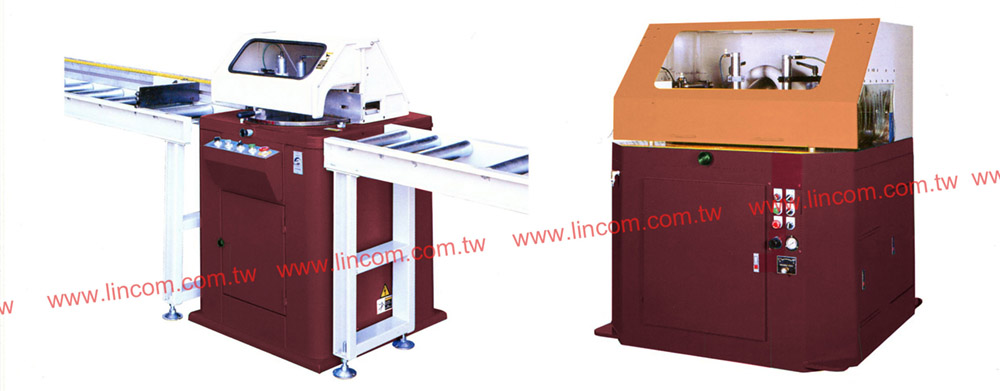

This Multi Angle Circular Saw Machine can work in various angles, and it is designed with setting points that ensures high accuracy saw-cutting & fast set-up. The automatic saw blade lubrication design not only extends the service life of blade, but also allows the cutting section to have no burr.
| MULTI ANGLE CIRCULAR SAW MACHINE | ||
| Model | CM-230 | CM-450 |
| Application | Aluminum door & window, radiating fin, stereo panel, plastic steel material, aluminum extrude type bakelite board, paper tube, etc. |
|
| Sawing Capacity | 90°: 230 x 150 mm 45°: 173.5 x 150 mm |
90°: 450 x 200 mm 45°: 400 x 200 mm |
| Cutting Angle | 15°, 30°, 45°, 90° | 15°, 30°, 45°, 90° |
| Cutting Motor | 3 hp | 7-1/2 hp |
| Cutting Speed | 3500 rpm | 2700 rpm |

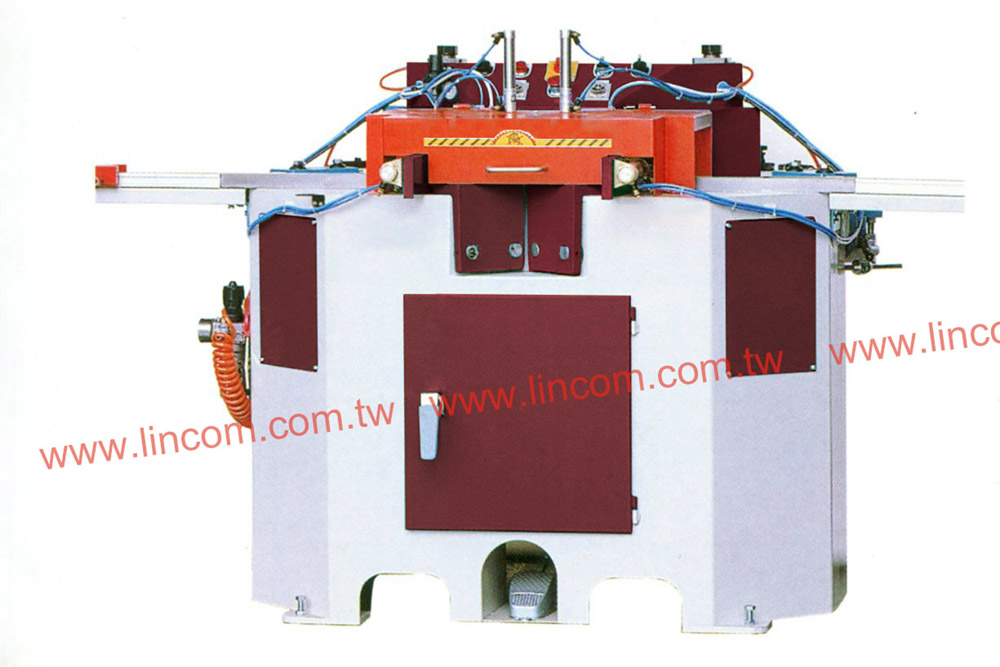

This machine uses high wearproof linear slide rail which enlarges cutting width & ensures precise angle cutting. The pressure to press raw material is adaptable, so to avoid product deformation. With auto lubrication design, the blade is more durable & can avoid burr on cutting section.
| DOUBLE-BLADE ANGLE SAW MACHINE, ALUMINUM 45° LINEAR TYPE |
|
| Sawing Capacity | Max. Cutting Width: 140 mm Max. Cutting Thickness: 95 mm |
| Cutting Angle | 45° |
| Cutting Speed | 3600 rpm |
| Cutting Motor | 3 hp x 2 |
| Feeding Rack | 1200 mm |
| Output Rack | 1525 mm |
